Infrared switching unit Polaris/ Hot Metal Detector

Temperaturschalter/ Hot Metal Detector Polaris

HMD Hot Metal Detector, contactless recognition of hot parts

Advantages:

  • Limit switches precise to the degree from 250°C
  • Two limit switches, freely adjustable temperatures
  • laser pilot light for alignment on the measured object facilitated by the precise laser marking which indicates the centre of the measured spot.

Extensive accessories as cooling housing, mounting bracket and Air purge

The units are exceptionally robust due to the fact that the measuring process is performed without mechanically moving parts and because the electronics are housed in a stainless steel cabinet.
By utilizing the digital signal process the Polaris line exceeds standard analog pyrometers in terms of precision and repeatability.

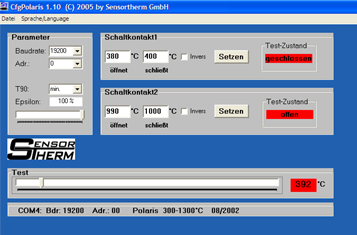

 Software CFG-Polaris             Anzeige des Schaltzustandes rückseitig durch LED

                            Switching position is indicated by two yellow LEDs on the rear side of the housing

Adjustment of the parameters such as response time t90, emissivity, switching points and hysteresis as well as the contacts NC and NO have to be made by the CFG-Polaris software.



 Datasheet:  Polaris PS and PI

If there are any furher questions we will be at your service
